功能 Application  >>>

殘極洗滌機組是?于傳統法和永久陰極法的機、 電、 液、 ? ? 體化的?動化銅電解?產設備 ，機組具有洗滌、 堆 垛、 ?動打包、輸出等功能

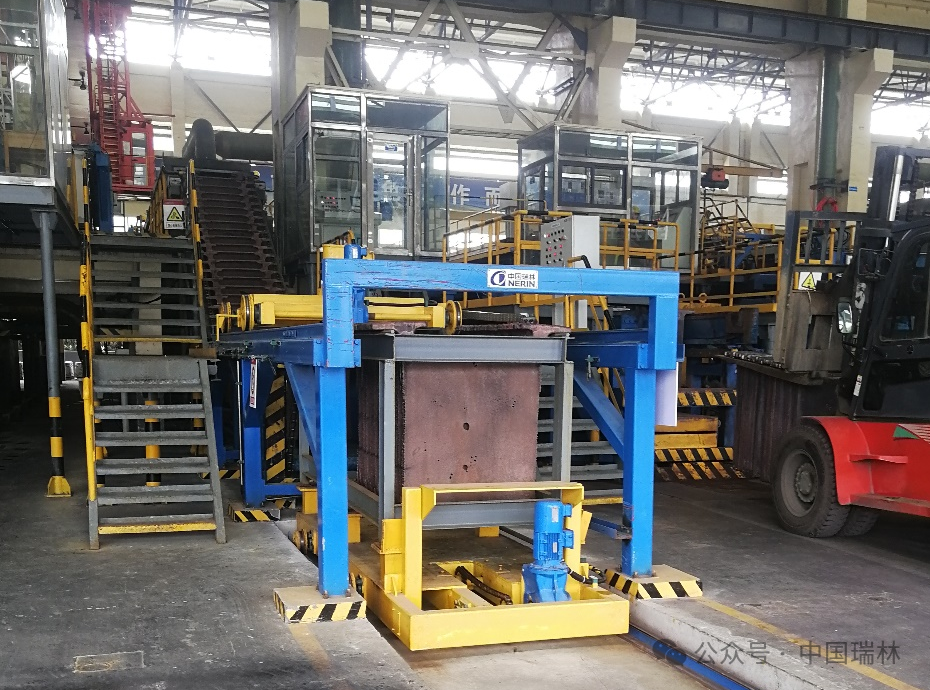

The anode preparation machine is the automated copper electrolysis production equipment that integrates

mechanical, electrical, hydraulic and pneumatic systems. The machine has functions such as washing, stacking, automatic packing and outputting

主要參數及組成  Main Parameters and Components   >>>

最?能?Maximum capacity：500pcs/h

殘極洗滌機組主要由： 受板鏈運機、洗滌鏈運機、傾轉裝置、堆垛升降臺， 步進輸送機（或輸出鏈運機）、打包 機、稱重裝置、破碎機、液壓系統和電?系統組成

The anode scrap washing machine mainly consists of receiving plate chain conveyor, washing chain conveyor, tilting device, stacking lifting device, stepper conveyor (or output chain conveyor), strapping machine,weighing  device, crusher, hydraulic system and electrical system

技術優勢與專利  Advantages and Patents

1、技術優勢 Advantages

1)?主創新的過渡裝置 ，結構簡單 ，穩定性好

Independent innovation transition unit with simple structure and good stability

2)優化的洗滌噴頭布置 ，殘極清洗?凈 ，提?了陽極泥的回收率

Rational nozzle layout to wash the anode scrap clean, improving the recovery rate of anode mud

3)殘極洗滌后液體殘留少 ，避免?滴落到設備或地?上造成腐蝕

The residual liquid is less after washing, so as to avoid corrosion caused by water dropping on the equipment or ground

4)可選挑板功能 ，將電解不完全的殘極板挑選出 ，?于再次電解或者凈液?間脫銅處理 ，節約成本

Optional plate picking unit would identify and pick the incomplete electrolysis plate out, which could be sent back to electrolysis tank or de-copper processed in solution purification shop

5)可以對殘極的板?及?朵分別進?破碎處理，提?了物料轉運的便捷性及回爐熔化的效率

It is possible to crush anode scrap plates and lugs separately, improving the convenience of material transfer and the efficiency of furnace melting

2、專利3項 3 Patents
