功能  Application  >>>

殘極加料機是將經過打包處理后的殘極垛以及粗銅塊經過整平、 輸送 ，并在轉爐不停?的條件下連續加? ，是 轉爐加 ?冷料的主要設備。根據?藝配置可分為斜提升殘極加料機和垂直提升殘極加料機兩種

The scrap feeder is to feed the packaged anode scrap and blister copper to the converter furnace continuously  while the CF is still under blowing. It is the major feeding equipment for the converter furnace. The scrap feeder includes diagonallifting scrap anode feeder and vertical lifting scrap anode feeder

主要參數及組成   Main Parameters and Components   >>>

最?處理能?Maximum Capacity：70t/h

1）斜提升殘極加料機主要由： 頭部、尾部、投料裝置、 輸送裝置、?道及欄桿、 液壓系統、潤滑系統、 電控系 統等組成

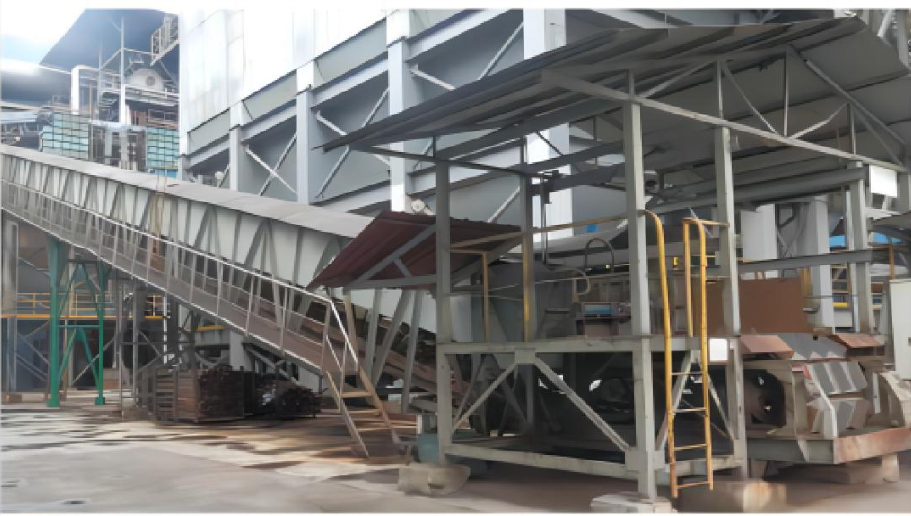

The inclined lifting  anode scrap feeder consists of head and tail device, feeding device, transporting device, aisle and fence, hydraulic system, lubricating system and electrical control system

2） 垂直提升殘極加料機主要由：規整對中裝置、升降臺、移載?? 、垂直提升機、抬起推?裝置、 ?平鏈運機 、投料裝置、 頭部裝置、?道及欄桿、液壓系統、潤滑系統、 電控系統等組成

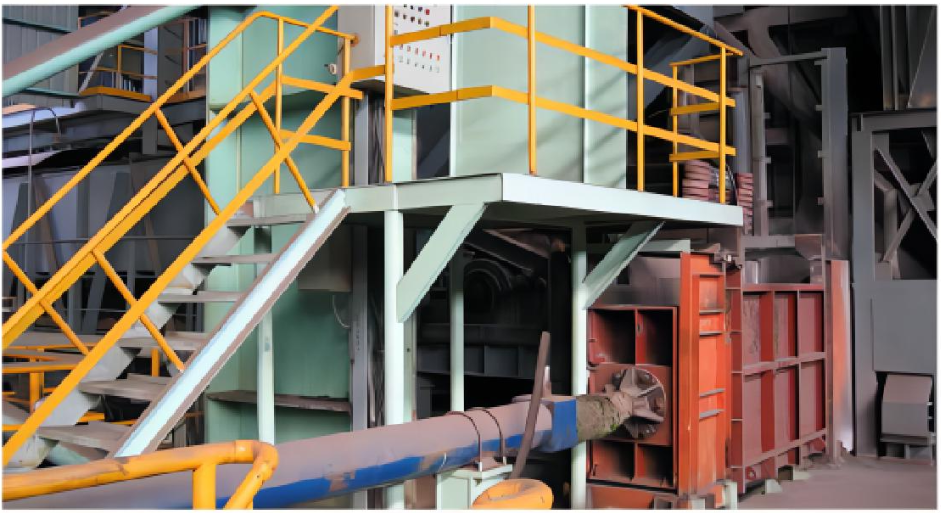

The vertical lifting scrap feeder consists of centering device, lifting platform, transfer trolley, vertical hoist, uplift and push device, horizontal chain conveyor, feeding device, head device, aisle and fence, hydraulic system,    lubricating system and electrical control system

技術優勢  Advantages  >>>

1、技術優勢 Advantages

1)配置靈活 ，既適?于?空間新?房配置 ，亦可?于?場地緊湊型?房配置或改造

With flexible configuration, the feeder is suitable for the new plant with large space, and also can be used in the old plant with limitation space or in the transformation project

2)可選垂直提升?式 ，結構緊湊 ， 占地空間?

Optional vertical lifting mode, with compact structure and small footprint

3)設置物料對?功能 ，可適應多種物料 ，包括殘極、銅錠等

With material alignment function, the feeder can adapt to a variety of materials, including the scrap anode, copper ingots and so on

4)加料機現場全程?清攝像頭監測 ，操作?員在操作室監測設備運?狀況并?便快速處理設備故障

The feeder is equipped with full HD  camera  monitoring  on the site, and the operator  in the operating  room can  monitor equipment  operating conditions and rapidly deal with equipment fault
